The world's leading nanomaterial technology solutions service provider, providing customized services such as grinding and dispersion equipment, intelligent production lines, and turnkey projects.
5 Years
| Ask Lasest Price | |
| Brand Name : | Boyee |
| Model Number : | Byzr-30L |
| Certification : | Certificates of invention |
| Price : | Negotiable |
| Payment Terms : | Western Union, T/T, L/C |
| Supply Ability : | 20 sets/month |
| Delivery Time : | 45DAYS |
Working principles
The device will allow fine fragmentation of solid particles, which first will be dispersed in liquid (so called wet milling). In paint and varnish industry, the process is used for example in pigment fragmentation.
Byzr series is a circulating mill with a horizontal milling chamber, which may work with any product independently of its viscosity. What is important, with the use of grinding media measuring from 90 microns to 3 mm, the Boyee Byzr series mill allows fragmentation of solid particles event to the level of nanoparticles.
Ergonomic design of the device allows easy cleaning, which in turn facilitates quick product exchange. Such a construction makes servicing really easy.
Application areas:
Printing ink ,inkject ink,ceramic inkject ,coatings ,dyes ,color pastes(textiles,Plastics),Pigment prepartations ,pigment manufacturing ,Phthalo-blue conversion,Fillers ,Pestiides,High-tech products:e.g.color filters,polishing agents for electronic components.cosmetics,Thermal paper coatings ,Magnetic coatings and many more
Product Features
Specifications
| Grinding Chamber | Designed Volume: 30L Effective Volume: 21L |
| Inner Chamber material:Silicon Carbide | |
| Outer Materia: SS304 | |
| Grinding Ceramic and rotor material:Zirconia | |
| Cooling Mode: Cooling water passing through grinding chamber | |
| Mechanical Sealing | Self-developed double acting mechanical seal. Sealing Support : SS304 |
| Dispersion & Grinding structure | Ceramic turbine grinding rotors |
| Dispersing linear speed | 10-14m/sec |
| Separating mode | dynamic ceramic classifier separation |
| Grinding Media | 95% zirconia beads Zirconia beads spec : Dia 0.3 mm- Dia 1.0mm Filling quantity recommended:70% ᷉ 80% |
| Power | 380V/50Hz |
| Dimension | 1750(L)x 1350(W)x 1850(H)mm |
| weight | 1205Kg |
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Training how to instal the machine, training how to use the
machine.
* Engineers available to service machinery overseas.
| Packaging | |
| Size | 1100*550*1650 |
| Weight | 80kg |
| Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. |
Long-term experience, continual development work, daily contact with our customers and developments with more than 30 patents ensure the technical competence and the quality awareness of the business unit.
A: We are factory.
A: Generally it is 5-10 days if the goods are in stock. or it is 30-40 days if the goods are not in stock, it is according to quantity.
A: Yes, we could offer the sample for charge &you should pay the cost of freight.
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
FESPA SHOW

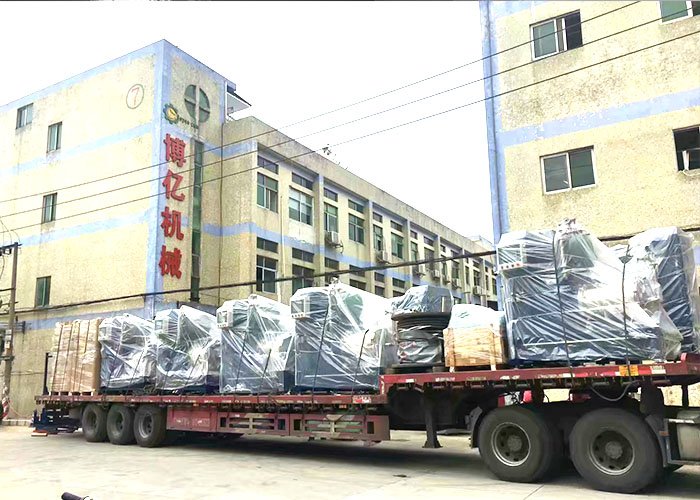

Domestic shipping
|
|
