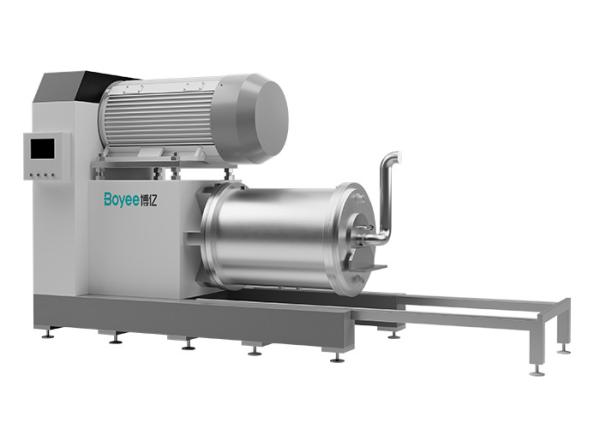

Centrifugal Bead Mill

The Boyee NMM series sand mill applies a single-power filter static discharge method to provide better grinding and dispersion effects of high-

viscosity materials, and handle products with a maximum viscosity of 100,000 CPS. Moreover, this product series applies two different nano-level

grinding systems, turbine and rod pin, and is equipped with patented TurboMax turbine structure that helps provide a gentler and finer grinding

effect and prevent excessive dispersion of materials. Moreover, its double-end mechanical seal and spiral-guided cooling circuit design contribute

to excellent operational stability and enhanced productivity by 50% with a reduced cost by 30%.

• higher flow
• excellent high-viscosity material handling ability
• optional TurboMax patented turbine and rod-pin grinding system
• optional ceramic, plastic and alloy material components
• longer filter duration
• all models conform to needs from laboratory experiments to large-scale production
• simple and fast daily maintenance

Centrifugal Bead Mill Parameter:

Centrifugal Bead Mill Machine Features:

The turbine, disc or pin-type inner structure of bead mill allows high grinding efficiency. It can reach 100 nanometers for D90;

According to the process characteristic, the rotation rate of the dispersion shaft can be changed by the frequency conversion technology

to get the best process parameters;

Pressure and temperature automatic control devices ensure safe production;

Reasonable design for inner and outer structure allows stable performance with no vibration and noise;

Ceramic and PU material is optional;

Frequency control and PLC are optional;

With CE&ISO9001:2008 qualification;

Dynamic or static separating system for different material to ensure smooth discharging.

Centrifugal Bead Mill Application:

Widely used in the industry of Silicon carbon anode, Carbon nanotube conductive paste,new energy, battery material etc.

Technological Indicators

• fineness: 30μm-2μm
• solvent system: water-based, oily
• Capacity: 30L-2000L/h
• Viscosity: ≤100,000 CPS
• Grinding media ≥0.3mm

Boyee is a global leading enterprise headquartered in Shenzhen, specializing in providing intelligent manufacturing equipment, automated production line solutions, and smart factories for nano-material customers. Since its establishment in 2004, Boyee has focused on wet grinding and dispersion technology for over 20 years. With its strong R&D capabilities and technical accumulation, Boyee has successfully built a top-notch expert R&D team consisting of more than 50 post-doctoral and overseas master's degree holders. Through 8 technological innovations, Boyee has accumulated over 80 patented inventions, showcasing its outstanding strength in the field of nano-material technology.

The products and services involve various industries such as new energy battery cathode and anode materials, semiconductors, ink coatings, food, pharmaceuticals, cosmetics, and chemical industries. As a strategic partner of top global material companies, Boyee has been committed to the technological application of new materials. It has established a grinding and dispersion technology research center to help companies solve production challenges and technical issues in processing, and assist customers in achieving the transition from laboratory research to industrial production.

In terms of global business layout, Boyee has offices in multiple countries overseas, including South Korea, the United Kingdom, and Japan. Its business covers more than 50 countries and regions worldwide. Driven by technological innovation and product optimization, Boyee provides customers with more efficient and intelligent manufacturing solutions, aiming to become a leader in the global nano-material intelligent manufacturing field.
