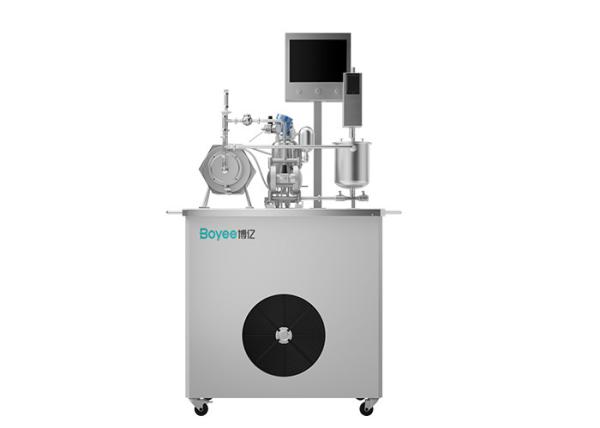

    75kw 90L SS304 Bead Mill Machine Grinding Lab Sand Mill

    Ask Lasest Price
    Brand Name : Boyee
    Model Number : NMM
    Certification : Certificates of invention
    Price : Negotiable
    Payment Terms : Western Union, T/T, L/C
    Supply Ability : 10 sets/month
    Delivery Time : 45DAYS
    • Product Details
    • Company Profile

    75kw 90L SS304 Bead Mill Machine Grinding Lab Sand Mill

    Horizontal Type Bead mill

    Boyee NMM series provides material contact parts with all plastic or industrial ceramic material design to bring down metal pollution.

    It also provides NMM sand mills made entirely of stainless steel to meet aseptic production needs of cosmetics, pharmaceutical and

    bioengineering industries.

    • Zirconium oxide
    • Silicon Carbide
    • Polyurethane (PU)
    • Tungsten carbide (alloy)

    Bead mill Advantages


    • Ultrafine grinding and dispersing technology, applicable for materials with different viscosities
    • Ceramic (zirconia/ carborundum) grinding chamber to avoid pollution and improve purity of the material
    • Mechanical seal with special design to facilitate stable operation
    • Patented centrifugal discharge solution of Boyee which solves the blockage problem
    • Better evenness for grinding with narrower peak of the distribution curve
    • Independent electric box, optimized process control system and intellectual technology to help monitor the operation data
    • Unique design for profile with reasonable structure and small space occupancy
    • Equipment remain stale and quiet with little noise while running
    • Ultrafine grinding media (as fine as 0.05mm) can be utilized without leakage or damage to the surface properties of the material

    Operational safty


    For increased operationaly safety,The mechanical seal fluid is monitored continously.These data can be documented and used for

    predictive maintenance to ensure high availability of the machine


    90l Bead mill Series

    Grinding Chamber

    Designed Volume: 90L

    Effective Volume: 98L

    Inner Chamber material:Silicon Carbide
    Outer Material: SS304
    Grinding Ceramic and rotor material:Zirconia
    Cooling Mode: Cooling water passing through gridning chamber
    Mechanical Sealing

    Self-developed double acting mechanical seal.

    Sealing Support : SS304

    Dispersion & Grinding structureCeramic turbine grinding rotors
    Dispersing linear speed10-15m/sec
    Separating modestatic screen separation
    Grinding Media

    95% zirconia beads

    Zirconia beads spec : Dia 0.3 mm- Dia 1.0mm

    Filling quantity recommended:70% ᷉ 80%

    Power380V/50Hz
    Dimension3290(L)x 1478(W)x 1950(H)mm
    weight3050Kg

    Customer workshop
