The world's leading nanomaterial technology solutions service provider, providing customized services such as grinding and dispersion equipment, intelligent production lines, and turnkey projects.
5 Years
| Ask Lasest Price | |
| Brand Name : | Boyee |
| Model Number : | NMM |
| Certification : | Certificates of invention |
| Price : | Negotiable |
| Payment Terms : | Western Union, T/T, L/C |
| Supply Ability : | 20 sets/month |
| Delivery Time : | 45DAYS |
Working Principles
-- Small capacity Turbine grinding system nano grinding mill is structure of machine is designed according to the principle of the sand mill, the experimental results can be enlarged and could direct the production.
-- With frequency inverter, the mahine could adjust rotating speed according to the process characteristics of the material, could collect optimum parameters.
-- It is wet grinding and dispersing equipment which can produce continuously, the working principle is the power delivered form high-speed rotor to grinding beads and suspension material, through mutual colliding and high shearing , aim of superfine can be achieved
Products Application
The small capacity dual-motor bead mill is widely used in small trial in different industry, such as any kinds of slurry wanna get submicro and nano scale , operating easily, using conveniently.
Other Series
Model | Volume (L) | Motor Power (KW) | Medium Size (mm) | Weight (KG) | Dimension (mm) |
NMM-10 | 10 | 18.5 | 0.3-1 | 1280 | 1800*1200*1550 |
NMM-30 | 30 | 45 | 0.3-1 | 1850 | 1800*1300*1800 |
NMM-60 | 58 | 75 | 0.3-1 | 2480 | 3290*1478*1950 |
NMM-90 | 98 | 75-90 | 0.3-1 | 3050 | 3290*1478*1950 |
NMM-150 | 120-180 | 160 | 0.3-1 | 5280 | 4500*1700*2400 |

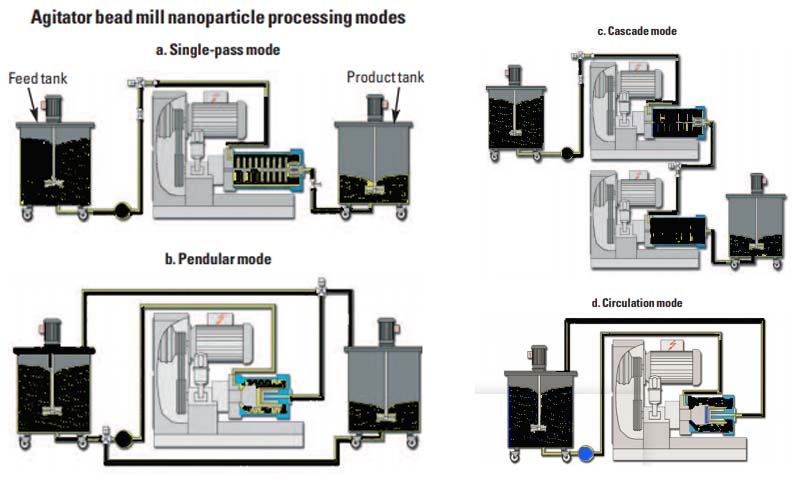

Nano grinding mill Processing models
|
|
