    400L 220V/380V Volume Horizontal Bead Sand Mill For Printing Ink / Paints Industry

    Ask Lasest Price
    Brand Name : Boyee
    Certification : CE ISO
    Supply Ability : 20 Set/Sets per Month that depends on cust need
    Price : Negotiable
    Model Number : NMM
    • Product Details
    • Company Profile

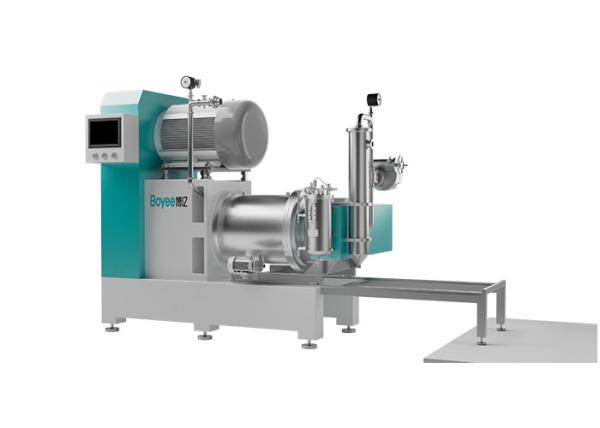

    400L 220V/380V Volume Horizontal Bead Sand Mill For Printing Ink / Paints Industry

    400L volume horizontal bead mill for the printing ink and paints industry
    Product Description

    Suitable for the grinding and dispersing of liquid-phase particulate materials such as surface coatings, dyes, pigments, printing inks, pesticides and paper industries.
    The machinery is designed for continuous production with efficient grinding and dispersing, suitable for various viscosity materials. The grinding mechanism is totally enclosed and solvent loss is cut down to minimum Specifically designed to incorporate rotating turbine rotors type agitation.
    Specially machined slots encourage the bead mass to concentrate against the product flow giving the very best grinding action. Complete with starters, feed pump and safety switches on over pressure and over temperature and media separation is obtained by centrifugal force separation system.


    Product Features

    • Simple profile, compact conformation and easy operation
    • Different choices for material of turbine, such as wear-resistant metal, ceramic and polyurethane
    • Dynamic separation or centrifugial separation with big flow, suitable for continuous production or batch production
    • Double mechanical seal with high reliability
    • Pressure induction protective device and electric protective system, secure and reliable
    • Full-ceramic grinding tools to avoid metallic pollution

    Product Application

    It is widely used to produce battery material,printing inks,ceramic material,microelectronics,semiconductor,cosmetics,

    pharmaceuticals,agrochemical,paper making,food,life science,paint,inks,fuel catalyst,lon echange products,metallic oxide,pigments,etc.
    Model

    Cylinder volume

    (L)

    Power

    (KW)

    Disperser rotating speed

    (r/min)

    Medium loading

    (%)

    Size

    L*W*H(mm)

    Weight

    (kg)

    3L37.50-145060-801400x1100x1680800
    10L1018.50-146060-801800x1200x15501280
    30L30450-100060-801800x1300x18001850
    60L58750-77660-803290x1478x19502480
    90L9875-900-77660-803290x1478x19503050
    150L120-1801600-62460-804500x1700x24005280
    400L400280-3150-46060-804600x1600x24008600

    400L 220V/380V Volume Horizontal Bead Sand Mill For Printing Ink / Paints Industry400L 220V/380V Volume Horizontal Bead Sand Mill For Printing Ink / Paints Industry

    Pre-Sales Service

    * Inquiry and consulting support.

    * Sample testing support.

    * View our Factory.

    After-Sales Service

    * Training how to instal the machine, training how to use the machine.

    * Engineers available to service machinery overseas.

    Packaging
    Size1100*550*1650
    Weight80kg
    Packaging DetailsThe normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
